High-resolution expiration marking machine developed with the best technology of Korea and exported to the overseas.
The T6 high-resolution expiration marking machine was developed to provide the best marking quality and XaarTM printhead engine enables high-definition marking over 200 DPI.
Printheads with 128 or 500 nozzles enable non-contact marking on the production line at extremely high speeds and mark the expiration date, lot number or barcode on the product very clearly.
In addition, the software in the Windows not only provides an easy user interface, but also provides sufficient and stable performance for editing, storage or compatibility with peripheral devices.
"Do you use catridges?"
"Is it possible to mark only boxes?"
NO
Troy's marking machine has three types of inks.
Oil based ink, UV curable ink, solvent based ink
Troy's marking machine has three types of inks.
Oil based ink, UV curable ink, solvent based ink
Oil-based inks are used for absorbent materials such as paper and carton boxes, and solvent-based inks for non-absorbent materials such as plastics, pipes, and vinyl.
"Please tell us the print height."
There are two main models.
The base model is a system using the Xaar128 printhead, which can be marked up to 17mm high.
The premium model uses the Xaar501 printhead and prints messages up to 70mm high.
The base model is a system using the Xaar128 printhead, which can be marked up to 17mm high.
The premium model uses the Xaar501 printhead and prints messages up to 70mm high.
The maximum marking speed is 60m / min, which enables precise marking even at high speeds.
In addition - text, images and barcodes can also be marked.
In addition - text, images and barcodes can also be marked.
▶ Markable Barcode Type
Code128C, Code128B, Code128A, Code39, Code93,
Codel1of5, CodeEan13, UPCA, UPCE, Code128AT
QRCODE, DATAMATRIX
Codel1of5, CodeEan13, UPCA, UPCE, Code128AT
QRCODE, DATAMATRIX
> Case Study <
We have installed T6 recently in Korea.

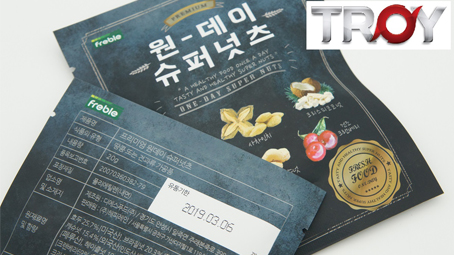

Lot number, production date, and expiration date. It is able to recognize the sensor accurately without missing product even at high speed, so it is possible to mark at the exact position
Lot number, production date, and expiration date. It is able to recognize the sensor accurately without missing product even at high speed, so it is possible to mark at the exact position
Do you want to watch this installation video?
Do you need more information regarding our T6 model?
Contact us anytime.
